The FC 3082 was specifically developed for multi-lane feeding systems. Three independently adjustable vibration outputs enable precise control of complex conveying processes.

Automated detection of the mechanical and electrical resonance frequency significantly reduces commissioning effort and permanently optimizes energy consumption and feed rate. This achieves maximum cost-efficiency during operation. Additionally, the integrated control of up to two external frequency converters allows for the integration of conveyor belts. Vibratory feeders and belt conveyors can thus be coordinated centrally – compact, synchronized, and system-efficient.

The intuitive web interface allows for seamless configuration, parameterization, and monitoring via the browser. During commissioning, the control unit can be operated autonomously as a master; in production, integration occurs via industrial bus interfaces as a slave in higher-level systems.

Three independently adjustable outputs (3-channel technology)

Each channel can be individually controlled and configured – ideal for multi-lane feeding solutions with varying conveying requirements.

Integrated level monitoring

Level detection sensors prevent overfilling and downtime, ensure process-reliable material flow, and reduce unnecessary energy consumption.

Automatic blockage detection

Detects conveying malfunctions or material flow congestion and reacts automatically – for stable operation and reduced downtime.

Additional control of up to two conveyor belts

Two integrated control outputs enable the direct connection of external frequency converters. This allows up to two belt conveyors to be integrated into the system without additional control units.

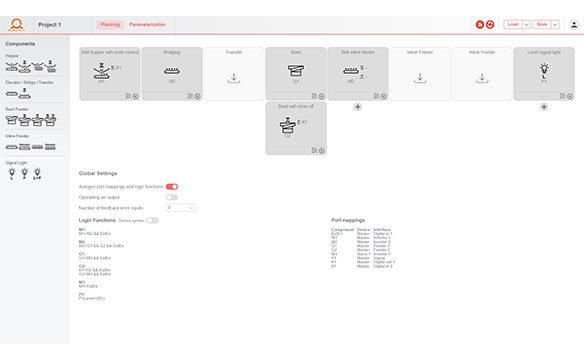

Intuitive web interface (web GUI)

User-friendly setup, configuration, and monitoring via the browser. Ideal for quick access and easy operation with full control for system administrators.

Industrial interface compatibility

Supports modern communication protocols such as ProfiNet, EtherNet/IP and EtherCAT – for easy system integration.

Cost-efficiency through energy-saving mode

Optimized control algorithms and intelligent shutdown noticeably reduce power consumption – especially during continuous operation.

Compact design and flexible installation

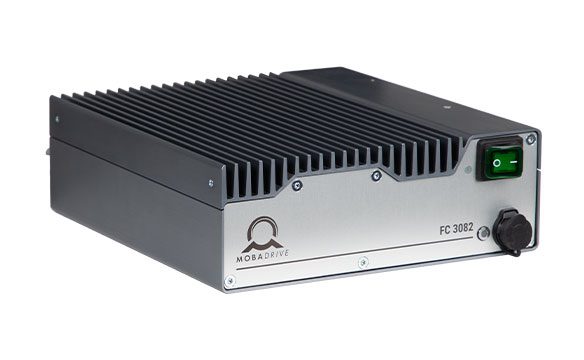

The FC 3082 Frequency Control is compact for a controller in its class at 258 × 89 × 270 mm and can be installed either horizontally or vertically.
